We're done having fun with butts. This lesson isn't as stinky, though it's close. We'll study the inner leg muscles - the adductors and sartorius.

They're in the upper inner part of the leg. The inguinal ligament separates them from the abs, ASIS to pubic symphysis. The long sartorius muscle separates the adductors from the quads diagonally. The border in the back is not as obvious. It fades away into fat and then suddenly it's the hamstrings. Though in certain poses and mostly on athletic people, you might see where the adductor magnus pops out at the top. It can separate the form of the adductors from the hamstrings.


Adductor back view
This little section is called the femoral triangle and has nerves, veins, arteries, lymph nodes, and the adductor area in general is prone to having more fat. All this stuff softens the inner leg muscles. This is actually good news for us because in most cases we don't need to know the individual adductor muscles, just their overall form and occasionally some tendons toward the top. In premium, we'll go over the anatomy of each adductor in more details because sometime it can be useful.

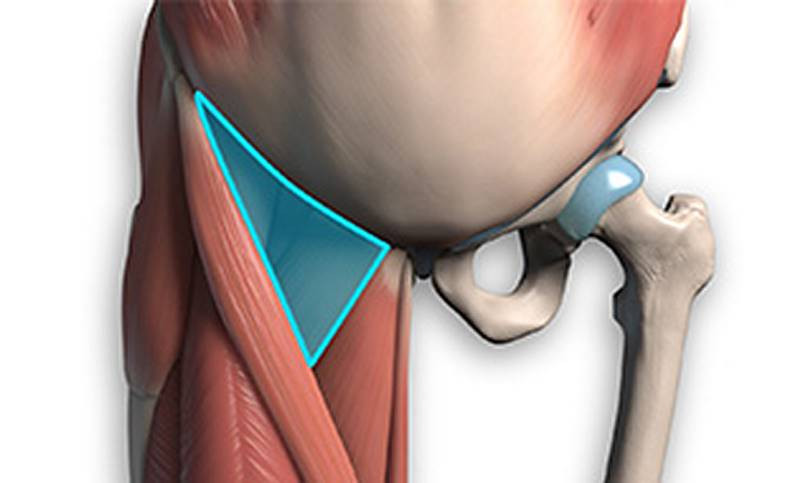

Adductor femoral triangle

So, let's get familiar with the simple forms. You know I love simple forms...

Simple Forms

Up to this point in this course and the figure drawing course, we've been drawing leg's as simple cylinders, maybe with a bit of taper, getting thinner toward the knee. And that's fine for starting our drawings. But now, since we're learning leg anatomy, we need to be able to take that cylinder and make it into... a leg!

Let's say we have this seated pose (see below), legs coming at us. Looking at a cross section, we'll see three main muscle groups. Quadriceps, hamstrings, and adductors. This video is about adductors, so let's group the quads and hamstrings into one large mass. Now, let's look at how a leg is different from a cylinder.

Adductor leg cross-section

In the middle everything is very meaty. You start seeing that indent on the inside where the adductor group attaches to the quads. The front plane is tall and round as the quads project out.

Near the knee, the leg isn't cylindrical at all. It's more boxy. The top is meaty, with the quads, and the back is tendinous, with two powerful hamstring tendons on the sides. So, the corners of the box are sharper in the back. It's like a slice of bread.

Leg cross-section

The main mass of the quads and hamstrings is boxy and short at the knee and grows much taller and egg-shaped at the hip. The adductors are like a secondary mass that attach on the inside, shaped like a cone or a wedge. You can see how it's separate from the rest of the leg mass especially in a seated pose like this. The adductor mass hangs down off the leg. The long sartorius muscle actually rounds it out a bit. Without it, the indent between these two forms would be even sharper. Also keep in mind that this area is a major fat storage area. So, that adds to the form and softens the borders.

Planes of the muscles
The sartorius is a great rhythm diagonally across the leg. You'll see it as as an oblique side plane. So, when we look at it with Bridgman glasses, the quads are a front plane, the sartorius is a side plane, and then the adductors make a triangular front plane, and another side plane is they wrap around to the back. We have 2 "steps" when we think of the front of the leg planarly.

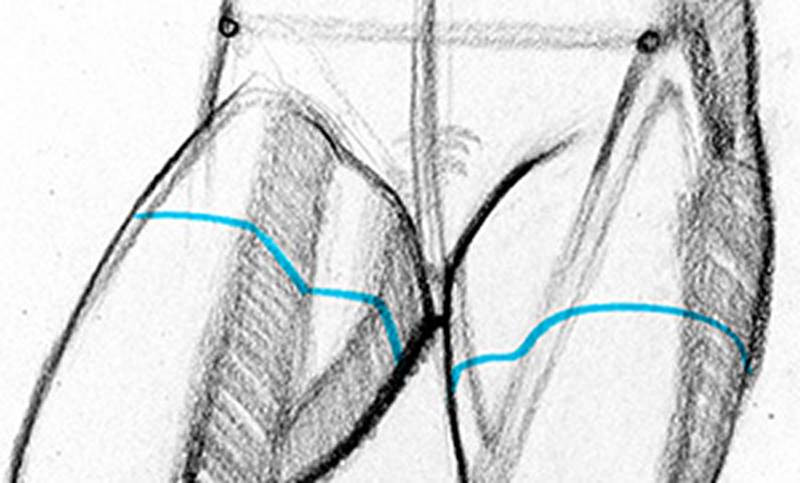

leg muscle steps


A Few Details


The sartorius and the TFL we learned about last time create a hollow triangle into which the quads dive in to. Sometimes you'll see this as an indent, but usually just as a flat vertical plane. Remember that the leg cylinder doesn't start at the ASIS point of the pelvis. We need to drop this vertical for the TFL and sartorius, and then start the leg cylinder a few inches down.

Indent from the hollow traingle created by TFL and Sartorius

The inside of the leg gets this double curve. Look for that when you're designing the flow down the leg. Remember how we talked about asymmetry in the limbs. The contours zig zag down the leg. Because female pelvises are wider, the adductor origins are farther apart. So thin females may have a "thigh gap". Here's a good example of it.

Female thigh gap

Like I said, the simple form is the most important thing to learn about the adductors. There's just a few tendons that you'll commonly see. Usually when the legs are spread apart, thinning out the fat and pulling the tendons tight. You'll see the tendons of the adductor longus and adductor magnus.
